Card Transactions Flow

Documentation Index

Fetch the complete documentation index at: https://docs.gr4vy.com/llms.txt

Use this file to discover all available pages before exploring further.

​

Action: Decline

This action allows transactions to be declined before they are routed to one of the connections. A custom error_code can be set which is returned on the transaction API to indicate the reason for the decline.

​

Action: Route to connection

This action allows transactions to be routed to a subset of connections. A transaction is processed sequentially with the defined outcome connections until it is successful. If a rule is matched and there are no active connections, or all connections fail to process the request, the transaction is declined.

​

Retries and cascading

Using the card route configuration framework, transactions can both be retried via the same connection under a different condition, or cascade through to another connection. Either the same conditions or potentially different conditions can be used. The optimal routing can be set up using preferred payment instruments and message transformations to optimize payment strategy. The routing rules are configured as a list; each transaction is attempted going down the list. That means that whichever combination of instruments and message types are configured overrides the transaction request sent in, and the rule configuration is taken as leading. If no transformation or default instrument (PAN) is selected, the transaction is processed as received on the API.

​

Failures and Retriable declines

The system automatically retries transactions based on the payment provider’s response. Retries occur in two scenarios:

• Failures: Attempts that fail due to technical reasons are automatically retried with the next connection in the sequence. Without any retry, the end status of this attempt would be authorization_failed.
• Retriable declines: Transactions that are declined with retriable decline codes are automatically retried with the next connections in the sequence. Retriable declines pertain to soft declines from the issuer, or technical decline codes from the acquirer or payment service that allow for retries via a different payment service.

​

Retry decision logic

The decision to retry is evaluated using the following priority order:

1. Skip retry conditions - No retry occurs if any of these conditions are true:
   • A transaction is explicitly set to not retriable by the payment service
   • merchant_advice_code (MAC) is present in the response - when a merchant advice code is provided, the code takes priority and prevents automatic retry
2. ISO response code evaluation - When an ISO 8583 response code is present:
   • If the code is NOT in the retriable list, no retry occurs
   • If the code IS in the retriable list, retry the transaction
3. Fallback to generic codes - When no ISO response code is present:
   • If transaction status is authorization_declined and the provider’s response code is in the retriable error_code list, retry the transaction
   • If transaction status is authorization_failed, retry the transaction

This approach prioritizes the raw ISO code from the acquirer, as it provides the most accurate and consistent indication of whether a transaction can be successfully retried via an alternative payment service or connection.

​

Retriable ISO response codes

The system uses ISO 8583 response codes to determine if a transaction should be automatically retried. The following ISO response codes are classified as retriable: These codes indicate temporary issues, technical problems, or situations where retrying with a different payment service or connection may result in a successful transaction.

​

Split routing condition

Split routing conditions allow distributing transactions across multiple routing rules based on percentage allocation. When a split routing condition is added to a routing rule, it defines the probability (as a percentage) of that rule being triggered for transactions that already meet the rule’s other conditions. For example, if a rule has a split routing condition of 30%, approximately 30% of the transactions that satisfy all other conditions of that rule are routed through it. This enables:

• A/B testing of different routing configurations.
• Load balancing between multiple connectors.
• Gradual deployment of new routing rules.

​

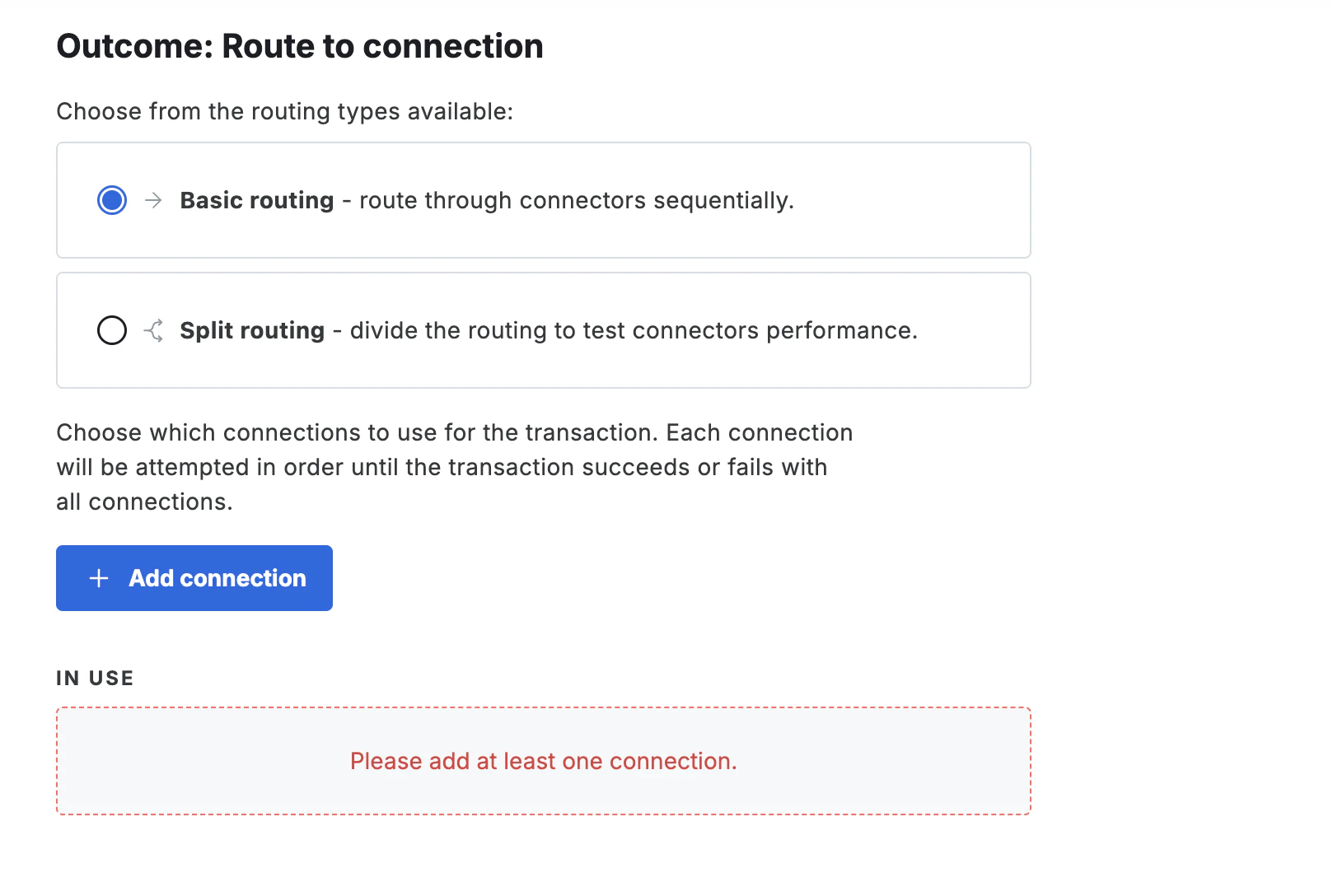

Outcome: Route to connection

Choose how traffic is distributed by selecting one of two routing types:

• Basic routing — route through connectors sequentially. Each connection is tried in order until the transaction succeeds or all connections have been attempted.
• Split routing — divide traffic across multiple connector sets to test and compare connector performance. See Split routing outcome for configuration details.

Regardless of routing type, select Add connection to add one or more connectors. Connections are tried sequentially within a routing path until the transaction succeeds or all connections have been attempted. When adding a connection, configure the instrument and message transformation to use — see Instruments and message transformations for details.

​

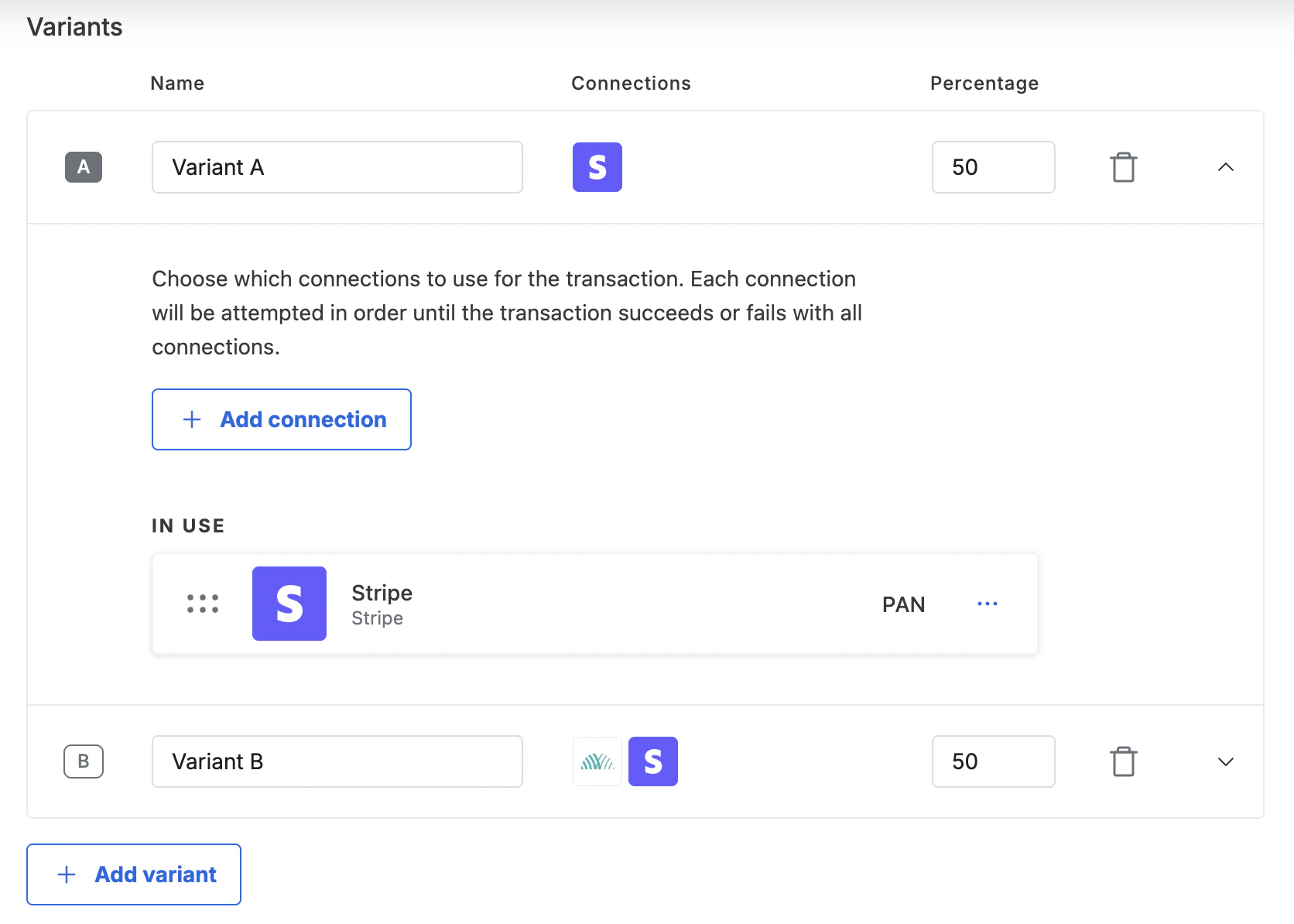

Split routing outcome

A split routing outcome distributes matched transactions across one to four variants, each routed to a different set of connectors. Each variant receives a defined percentage of traffic, and for each transaction a variant is randomly selected using those weights. Configure a split routing outcome Open or create a card routing rule, then select Split routing as the routing type in the rule outcome section. Two variants are created by default — Variant A and Variant B — each set to 50%. The variants table shows a row for each variant with Name, Connections, and % columns. For each variant:

1. Set a name — edit the name inline. Use something descriptive, such as “Control” or “Adyen Network Token”, so results are easy to read in Insights.
2. Set the traffic percentage — enter a whole number in the % column. All variant percentages must total exactly 100. The form prevents saving if the total is not met.
3. Add connections — click a variant row to expand it, then select Add connection to add one or more connectors in your preferred failover order.

Once all variants have at least one connection and percentages total 100%, select Save. The rule becomes active immediately. Manage variants

• Adjust percentages — edit the % value for any variant and save. Changes take effect immediately on new transactions.
• Add a variant — select Add variant below the variants table. A new empty variant is created with 0% traffic. Set a name, add connections, and assign a percentage before saving.
• Remove a variant — select the trash icon on the variant row. Redistribute the remaining percentages to total 100% before saving. You cannot remove the only remaining variant in a rule.
• Reorder connections — expand a variant and drag connections to reorder them. The first connection is the primary route; subsequent connections are used as failover.

Monitor performance Once a rule with a split routing outcome is active, compare variant performance in Insights under the Authorization tab. The Split routing variants module shows transaction counts, volume, or auth rate broken down by variant name. From the Card transactions rules list, select the chart icon next to any split routing rule to open Insights pre-filtered for that rule’s outcome variants. Limits

​

Instruments and message transformations

The routing framework allows granular rules to be set up by allowing the choice of instrument to be processed with, and how the transaction message is presented to the payment service. The choice of instrument can be combined with the message transformation where available.

​

Instruments

It is currently possible to choose to route transactions using two instruments, PAN, or Network Token. For routing network tokens, network tokens need to be enabled, and the connection needs to support the submission of network tokens. If either of these is not supported, network tokens are not used, and the rule is skipped. If the payment service doesn’t support the submission of network tokens, it is not configurable. Setting up a PAN rule as a default is advised.

​

Message transformations

By choosing a message transformation, the presentment of the transaction message towards the payment service can be altered. It is currently possible to override the transaction as an MIT transaction. Please note that using this message transformation should be used with caution. If the business model is inherently not a subscription based model or supportive of any recurring transactions, reprimands can be issued by the card schemes for incorrect flagging of transactions. Sanctions are levied on the acquirer; however, these can be passed through to the merchant.

MIT

By selecting this transformation, transactions are sent to the payment service as a merchant initiated transaction (MIT). Please note that this message transformation should be used with caution. If the business model is inherently not a subscription based model, or supportive of any recurring transactions, then reprimands can be issued by the card schemes for incorrect flagging of transactions. Sanctions are levied on the acquirer; however, these can be passed through to the merchant. If the original transaction is already sent as an MIT, no transformation happens as the original transaction is already an MIT transaction.

Co-badged routing

This transformation forces the processing of a transaction to use the first additional scheme (co-badged scheme) of the card instead of its main scheme. If the card doesn’t have any co-badged schemes, this transformation is skipped. For example, for a co-badged Visa card that also supports the Cartes Bancaires scheme, adding this transformation forces the transaction to be processed as Cartes Bancaires. It is important to make sure that co-badged acquiring routes are configured on the payment service intended to be used. In general, the following rules apply.

• A rule is skipped if the intent is set to authorise and the co-badged scheme does not support delayed capture, for example EFTPOS.
• A rule is skipped if the card only supports one known scheme.
• When using 3DS, if the scheme used for the transaction is different to the scheme used to authenticate 3DS, then the 3DS payload is dropped and not used to process the transaction. This is done to prevent triggering 3DS again. Note that currently the 3DS integration does not support most co-badged card schemes.
• Network tokens are currently not supported in combination with co-badged schemed.
• For any payment services that do not rely on the vault but the service’s tokens, the token is sent in combination with the additional scheme
• For subsequent transactions that use a network transaction id (scheme reference) to link it to the initial transaction, if the scheme to be used doesn’t match the scheme of the ID, then the attempt is skipped, and the next strategy in the rule is attempted.

​

Payment method replacement

For merchants who have the account updater enabled, additional logic applies after a transaction has been declined. When the account updater has received new details for a card, but the card hasn’t expired yet, then these new details are left inactive and on standby for future use. If this card is then used at a later point and the card is declined by a connection, then the old card details are marked as inactive and the payment method is updated with the new card details from the account updater. The transaction is subsequently retried with the new details with the same connection. This retry is applied outside of any retries that are configured as part of Flow.

​

Action: 3-D Secure

This action allows control over when 3-D Secure is required for transactions.

​

Conditions

The following conditions can be added:

• Amount: This enables filtering based on the amount for the transaction. Each rule defines a single currency for which it applies. A minimum amount, maximum amount, or a range for the amount can be specified.
• Anti-fraud decision: This enables filtering based on a risk decision received from an anti-fraud provider as an inclusive or exclusive list of decisions. Note that Error (unable to get decision) represents a state where a decision is unobtainable. For example, due to a network timeout or server error.
• Browser language: This enables filtering based on a buyer’s browser language.
• BIN range: This enables filtering on up to the first eight digits of the card, for example: 4242-4545 or 12345678-12345678.
• Card country: This enables filtering based on the country of the card as an inclusive or exclusive list of countries.
• Card issuer name: This enables filtering based on the issuer name of the card, for example: Bank of America NA or HSBC Continental Europe. It can be filtered by a part of the name.
• Card product name: This enables filtering based on the card product name, for example: Visa Platinum or MasterCard Black. It can be filtered by a part of the name.
• Card scheme: This enables filtering based on the scheme of the card as an inclusive or exclusive list of schemes.
• Card source: This enables filtering based on the input used for the card, for example: Apple Pay, Google Pay, tokenized, or one-off card details.
• Card type: This enables filtering based on the type of the card as an inclusive or exclusive list of types.
• Country: This enables filtering based on the customer’s country as an inclusive or exclusive list of countries.
• Currency: This enables filtering based on the transaction currency as an inclusive or exclusive list of currencies.
• Gift card BIN range: This enables filtering on up to the first nine digits of a gift card, for example: 4242-4545 or 123456789-123456789.
• Has gift cards: This enables filtering based on whether gift cards were used in the transaction.
• Is subsequent payment: This enables filtering based on the transaction’s is_subsequent_payment flag value, set to either true or false.
• Merchant initiated: This enables filtering based on the transaction’s merchant_initiated flag value, set to either true or false.
• Metadata: This enables filtering based on key/value strings from an object passed to the API. This currently only supports matching/not matching string values. For example, {"foo": "bar"} could be passed and a condition created based on the value of the foo key.
• Metadata (Numeric): This enables filtering based on key/value numeric strings from an object passed to the API. It only supports numeric comparisons like less than, equal to, greater than, greater than or equal to and less than or equal to. For example, {"foo": "200.1"} could be passed and a condition created based on the numeric value 200.1 of the foo key.
• Payment source: This enables filtering based on the transaction payment source as an inclusive or exclusive list of payment sources.
• Product categories: This enables filtering based on the product categories of cart items.
• Product types: This enables filtering based on the product types of cart items.
• SKUs: This enables filtering based on the SKUs of cart items.
• Split routing: This enables filtering based on set probability (percentage), for example, setting 30 would evaluate to true for approximately 30% of requests.
